The AIR-O-CRIMP™ fitting system has been developed for applications in which
hose end fittings must be attached at point of use in difficult applications such as Buses,Ambulances, RV’s, and Limos.

There is no need for a conventional crimping
tool in order to achieve a reliable connection of the fitting and hose.

O-RINGS
Single
20-4737A #6 oring
20-4738A #8 oring
20-4739A #10 oring
20-4740A #12 oring
Packs of 20
20-4737 #6
20-4738 #8
20-4739 #10
20-4740 #12

List Of All Aluminum Styles
In Numerical Order
Legend
FO=Female oring
FSL=female springlock
H=Hose
MO=Male oring
MIO=Male insert oring
MSL=Male springlock
ST=Straight
134aSP= Service port for  134a refrigerant
1/4"SP=R12 style port, pressure switch type
20-BL1301       #6FO XST
20-BL1301-3    #6FO w/134a SP
20-BL1302      #8FO XST
20-BL1302-     8FOST w/134a SP
20-BL1303      #10FO XST
20-BL1303-3   #10 FO ST 134a SP
20-BL1304      #12FO XST
20-BL1305      Step-up #6FO x#8H
20-BL1306      Step-up #8FO x#10H
20-BL1307     Step up#10 FO x 12 H
20-BL1308      Step-down  #8F x#6H
20-BL1310     Step down #12 FO x 10 H

20-BL1311      #6FO X45
20-BL1312      #8FOX45°
20-BL1312-3   #8FOX45° W/SP
20-BL1313       #10FO X45
20-BL1313-3    #10FO X45 W/SP
20-BL1315      Step up #6FO to #8 H


20-BL1321      #6FO X90
20-BL1321-3   #6FO X90 w/134a SP
20-BL1322      #8 90°
20-BL1322-3   #8F 90° x#8 H w134aSP
20-BL1323      #10FO X90
20-BL1323-3   #10FO LP 10H-90 134SP
20-BL1324      #12FO X90
20-BL1325     #6FO x 8H Step up 90°
20-BL1326     #8FO 90° x #10 H
20-BL1327-3  #10 FO x12H 90°
20-BL1328     #8FOx6H Step down 90
20-BL1330     #12 FO x 10H Step down 90°


20-BL1401      #6MO XST
20-BL1402      #8MO XST
20-BL1403      #10MO XST
20-BL1414      #12 MO x 45°
20-BL1421      #6MO X90
20-BL1422      #8MO X90
20-BL1423      #10 MO x 90
20-BL1425     Stepup #6-8 x 90°H


20-BL1701     Bulkhead #6MIO x ST
20-BL1702     Bulkhead #8MIO x ST
20-BL1703     Bulkhead #10MIO x ST
20-BL1721     Bulkhead #6MIO 90°
20-BL1722     Bulkhead #8MIO 90°


20-BL1801      MIO x 6 straight
20-BL1802      MIO x 8 straight
20-BL1803      MIO x 10 straight
20-BL1804      MIO x 12  straight

20-BL1812      MOI x #8  45°


20-BL1821      #6MIO 90°
20-BL1822      #8 MIO x 90°
20-BL1823      #10MO 90°

20-BL1920     GM Block beadlock ST

20-BL1924A     GM   One shot #6x6
20-BL1925A     GM   One shot #11x10

20-BL1931     #6 FO x 180°
20-BL1932     #8 FO x 180°
20-BL1933     #10FO x 180°
20-BL1936     #6MO X180°

20-BL534135Q   #8 FO x 135° w/134 SP
20-BL535135Q   #10 FO x 135° w/134a SP


20-BL6101      Splicer #6 x 6
20-BL6101-1   Splicer #6 1/4" SP
20-BL6101-3   Splicer #6 w/ 134 SP
20-BL6102       Splicer #8 x 8
20-BL6102-1    Splicer #8 w 1/4" SP
20-BL6102-3    Splicer #8 w/134 sp
20-BL6103        Splicer #10 x 10
20-BL6103-1    Splicer #10  1/4" SP
20-BL6103-3    Splicer #10 w/134 SP
20-BL6104       Splicer # 12H
20-BL6104-3   Splicer # 12H w/134 SP
20-BL6106      #8H-#10H Stepup splicer

20-BL6201     Splicer tee #6x6x6H
20-BL6202     Splicer tee #8x8x8H
20-BL6203     Splicer tee #10x10x10H
20-BL6225    Ford condenser tee #6 H
20-BL6226    Univ. T splicer #8 x6H
20-BL6235    Universal T splicer 10x10H
20-BL6236    Univ T splicer #12x#10H
20-BL6295     Ford  8FSL X 8MSL X TEE 90
20-BL6298    Ford  12FSL X 12MSL X TEE

20-BL9304     20MMFO x 6H
20-BL9304-3  20MMFO x 6H w134SP
20-BL9306     22MMFO x 10H x ST
20-BL9307      24MM x10 ST
20-BL9307-3  24MMFO ST x #10 w134SP
20-BL9308     27MMFO x 12H x ST
20-BL9309     27MMFO ST 4 x 10 H
20-BL9324    20MMFO x 6H90°
20-BL9324-3 20MMFO x 6H90° 134 SP
20-BL9325     20MM FO  90° x #8 H
20-BL9326     22MM FO 90° x 10 H
20-BL9327     24MM FO 90° x #10 H
20-BL9327-3  24MM FO x10H 90° w134 SP

Click to download
Fitting ,Oring Dimensional Data
Fitting hose ends, Hose Dimensional Data
Fittings
 Air-O-Crimp™
aLUMINUM beadlock crimp style
 sTEEL beadlock crimp style
Use "20-AN" prefix for all Air-O-Crimp™part numbers
Use "20-BL" prefix for all Aluminum part numbers
Use "20-SB" prefix for all Steel part numbers

i.e. 20-BL1301 is aluminum, #6 straight
FEMALE
O-RING		 MALE O-RING MALE INSERT
O RING
CLICK ON IMAGES ABOVE TO NAVIGATE
Dimensional Data
The most common sizes are shown below.
For Illustration purposes, "AN" style fittings shown.
Click on images to enlarge.
Female O-Ring

Straight

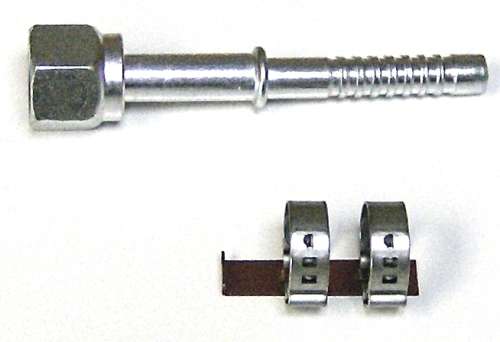

1301   # 6 straight
1302   # 8 straight
1303   # 10 straight
1304   # 12 straight
1306   #8 x # 10 Hose step up
1308   #8 x #6 Hose step down

Straight/With Charge Port

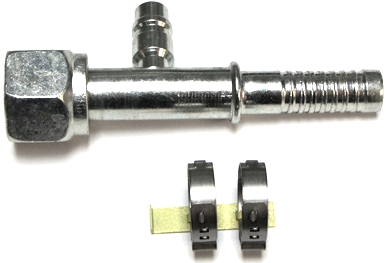

1302-3  # 8  w/ charge port
1303-3  # 10  w/ charge port
1304-3 # 12  w/ charge port

45 Degree

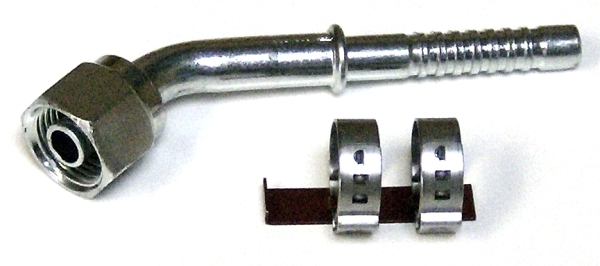

1311   # 6 45’ degree
1312  # 8 45’ degree
1313   # 10 45’ degree
1314   # 12 45’ degree
1316   # 8 x # 10 Hose step up
1317   # 10 x # 12 Hose step up

90 Degree
1321  # 6 90’ degree
1322  # 8 90’ degree
1323  # 10 90’ degree
1324  # 12 90’ degree
1325  # 6 x # 8 Hose step up
1327  # 10 x # 12 Hose step up
1328  # 8 x #6 Hose step down
1329 #10 x # 8 Hose step down

90 Degree /With Charge Port
1322-3  # 8  w/ charge port
1323-3 # 10  w/charge port
1324-5 # 12  w/ charge port
Female O-Ring Metric
Straight/Metric
9304 20MM X 1.5 X #6HOSE
9305 20MM X 1.5 #8 HOSE
9310 27MM X 2.0 #10HOSE
90 Degree /With Charge Port
Metric
9324-3 M20 FOR #6 90°
9327-3  M24 FOR #10 90°
MALE O-RING
 Standard

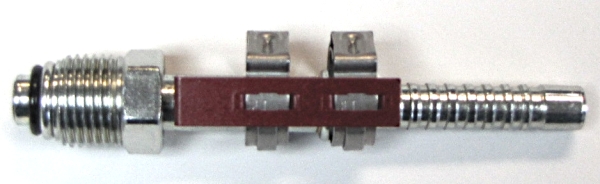

1401  # 6 straight
1402  # 8 straight
1403  # 10 straight
1404  # 12 straight
1407  # 10 x # 12 Hose step up
45 Degree

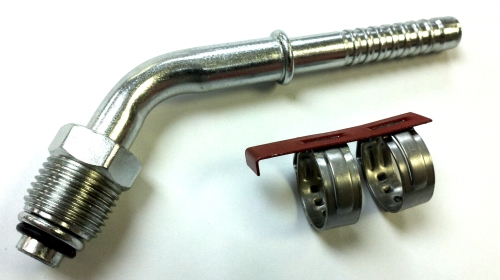

1411  # 6 45’ degree
1417  # 10 X # 12 Hose step up
90 Degree

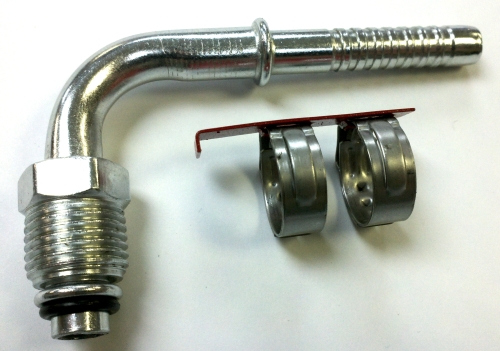

1421  # 6 90’ degree
1422 # 8 90’ degree
1423  # 10 90’ degree
1424  # 12 90’ degree
1425  # 6 x # 8 Hose step up
1426  # 8 x # 10 Hose step up
1427 # 10 x # 12 Hose step up

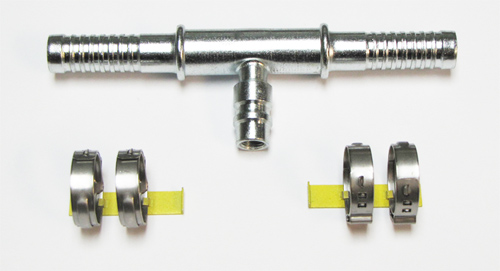

SPLICERS

Clamps not included for AN style, order separately

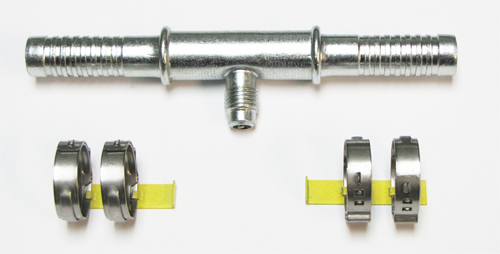

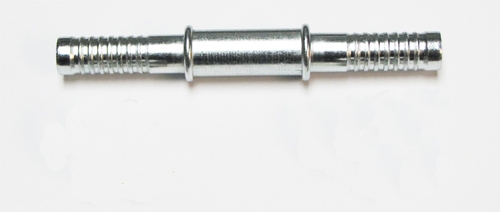

6101 Fitting Splicer 6 x 6
6102 Fitting Splicer 8 x 8
6103 Fitting Splicer 10 x 10
6104 Fitting Splicer 12 x 12
6101-1  6 x 6 w/SP
6102-1  8 x 8 w/SP
6103-1  10 x 10 w/SP
6104-1  12 x 12 w/SP
6101-3  6 x 6 w/ charge port
6102-3  8 x 8 w/ charge port
6103-3  10 x 10 w/ charge port
6104-3  12 x 12 w/ charge port

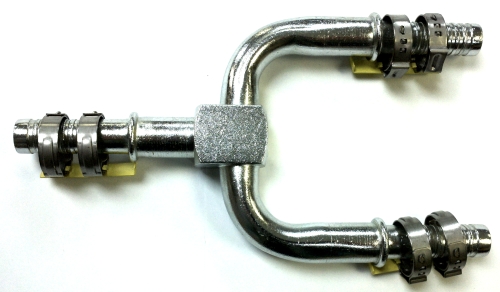

6331  6X6X6 180 DEG
6333  10x10x10180 DEG
6334  12x12x12 180 DEG
CLAMPS

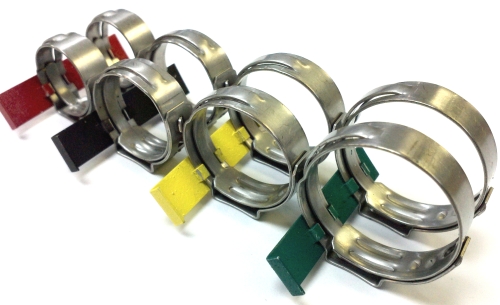

"AN" STYLE CLAMPS
20-3806A # 6 Clamp Red
20-3808A # 8 Clamp Black
20-3810A # 10 Clamp Yellow
20-3812A # 12 Clamp Green
Tools



For use with AN style fittings

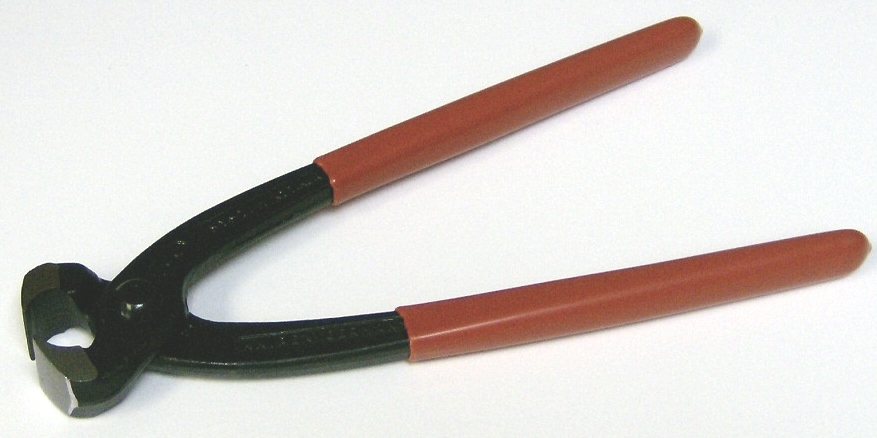

20-3801 Flat Crimp Pliers
20-3802 90 Degree Crimping Pliers
20-3803 Ratchet Style Crimping Pliers
(Not shown)




For use with Aluminum and Steel
Beadlock Fittings

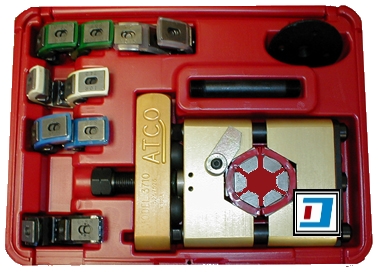

29-7084 Atco Crimper
SPECIALTY

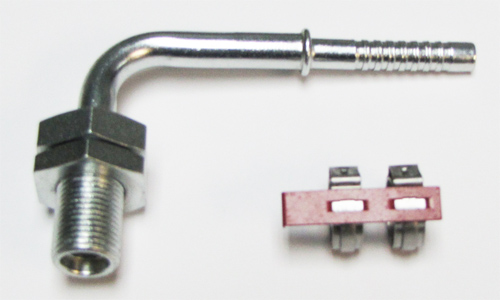

1721 #6 MIO Bulkhead
1722 #8 MIO Bulkhead
1723 #10 MIO Bulkhead

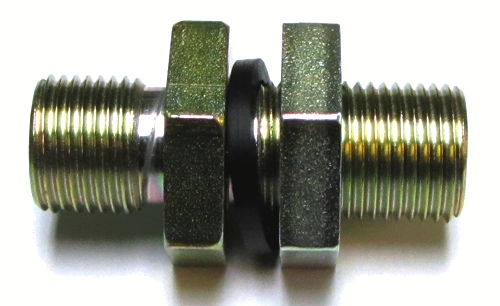

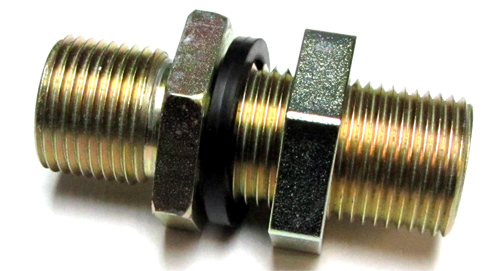

20-Bulk6 -Bulkhead FTG #6 5/8-18
1-3/4" overall

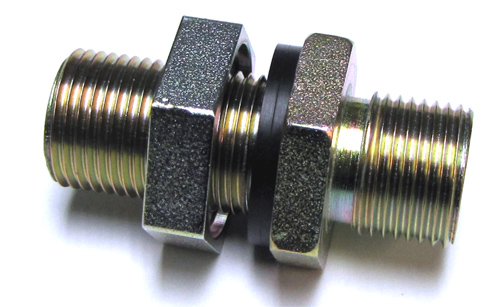

20-Bulk8-Bulkhead FTG #8 3/4-16
2-1/8" overall
20-Bulk10-Bulkhead FTG #10 7/8-14
2-1/2" overall

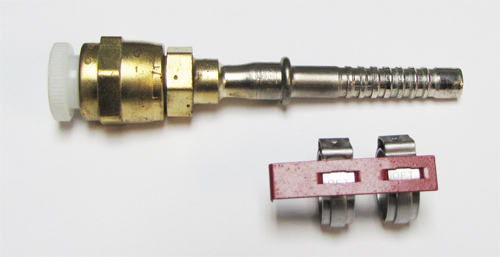

1924 #6 ST FEM ONE SHOT
1925 #10 ST FEM ONE SHOT

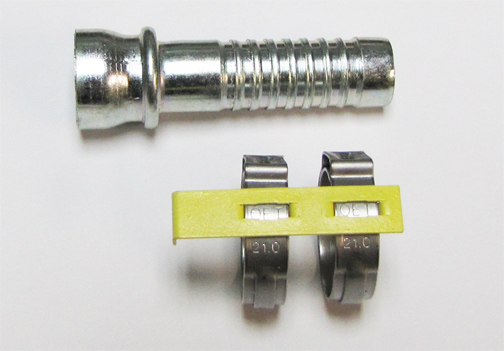

6601 Weld On #6
6602 Weld On #8
6603 Weld On #10
